Ignition Switch - 3 Position Conventional | MP39120

Product image 1
1 / 2

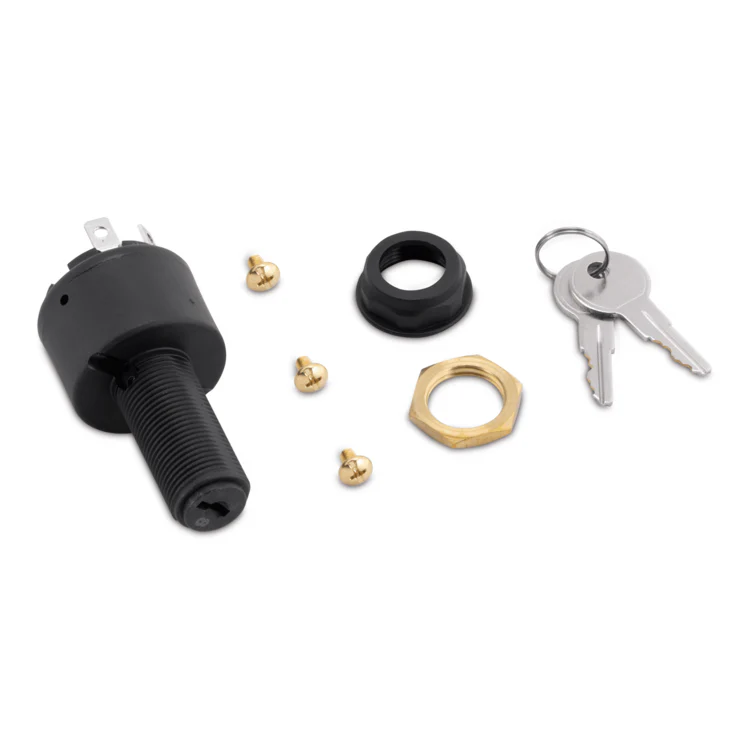

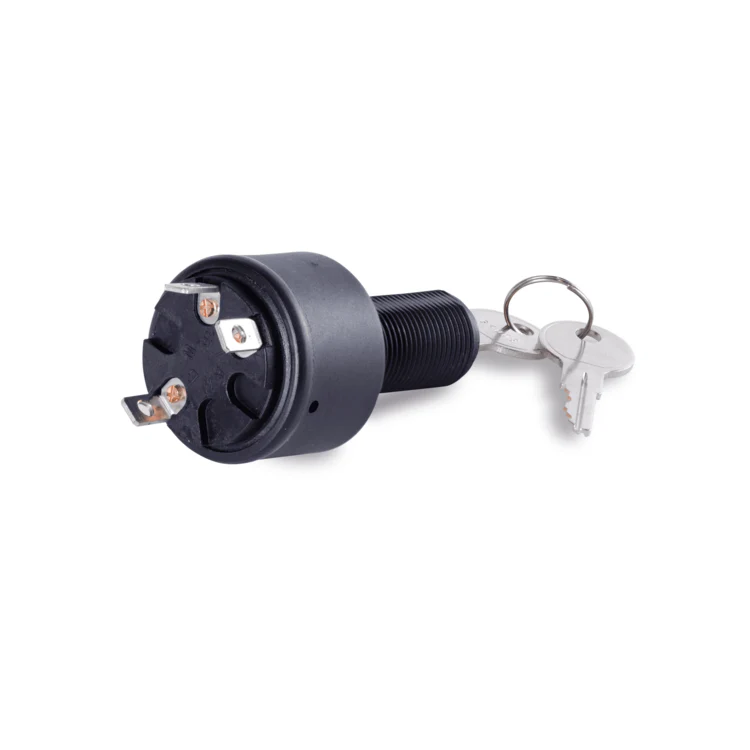

Ignition Switch - 3 Position Conventional | MP39120

Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts.

  • Back Up Nut: Brass
  • Face Nut: Hex Black Plastic
  • Hole Size: 7/8"
  • Length: Long: 1 1/8" maximum panel thickness
  • Rated Ignition: 15 Amp @ 12v DC
  • Rated Solenoid: 30 Amp @ 12v DC
  • Terminal Type: 3 Screw Tab
  • Switch Function: Off - Run - Start
$30.79
Ignition Switch - 3 Position Conventional | MP39120—
$30.79

Product Information

Shipping & Returns

Description

Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts.

  • Back Up Nut: Brass
  • Face Nut: Hex Black Plastic
  • Hole Size: 7/8"
  • Length: Long: 1 1/8" maximum panel thickness
  • Rated Ignition: 15 Amp @ 12v DC
  • Rated Solenoid: 30 Amp @ 12v DC
  • Terminal Type: 3 Screw Tab
  • Switch Function: Off - Run - Start
