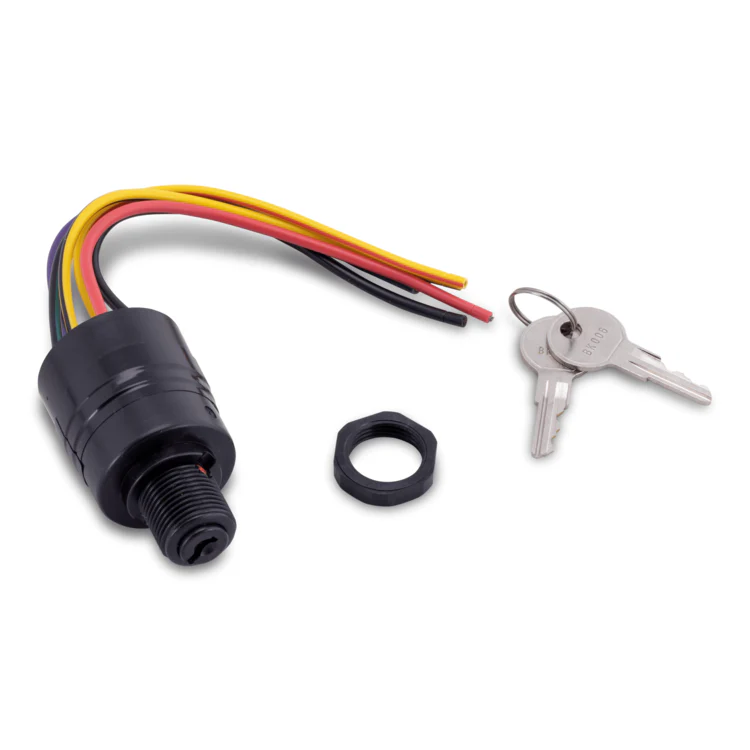

Maximum corrosion protection - eliminates oxidation. Inner seal between cylinder lock and contact plate. Non-conductive housing eliminates potential shorts. Note: Colors on switch wires match factory color codes.

• Switch Function: Off - Run - Start
• Back Up Nut: Not Required
• Face Nut: Hex Black Plastic
• Hole Size: 7/8"
• Length: Short: 5/8" maximum panel thickness
• Material: Marine grade glass-filled Polyester
• Rated Choke: 7 Amp @ 12v DC
• Rated Ignition: 15 Amp @ 12v DC
• Rated Solenoid: 30 Amp @ 12v DC

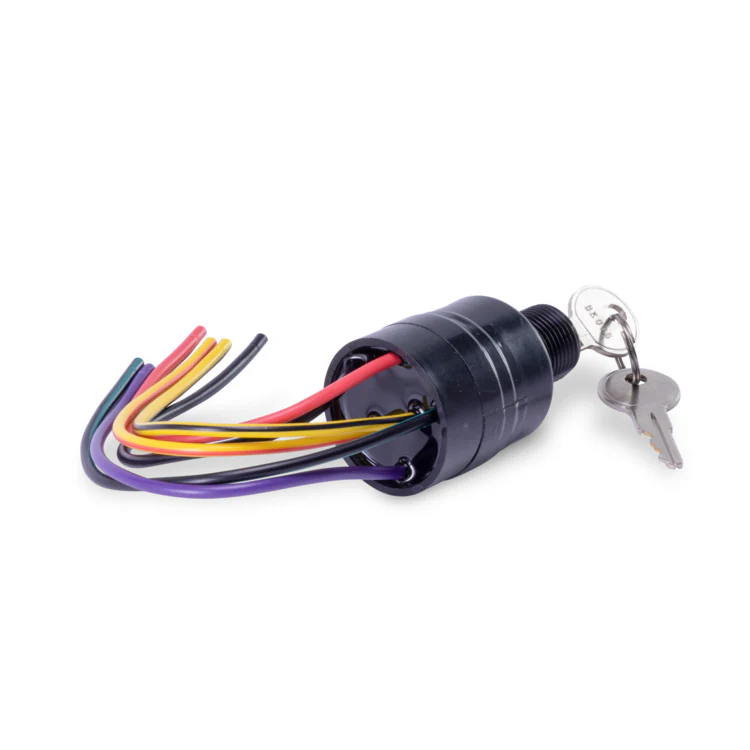

• Terminal Type: 6 Color Coded Wire Leads/Potted
